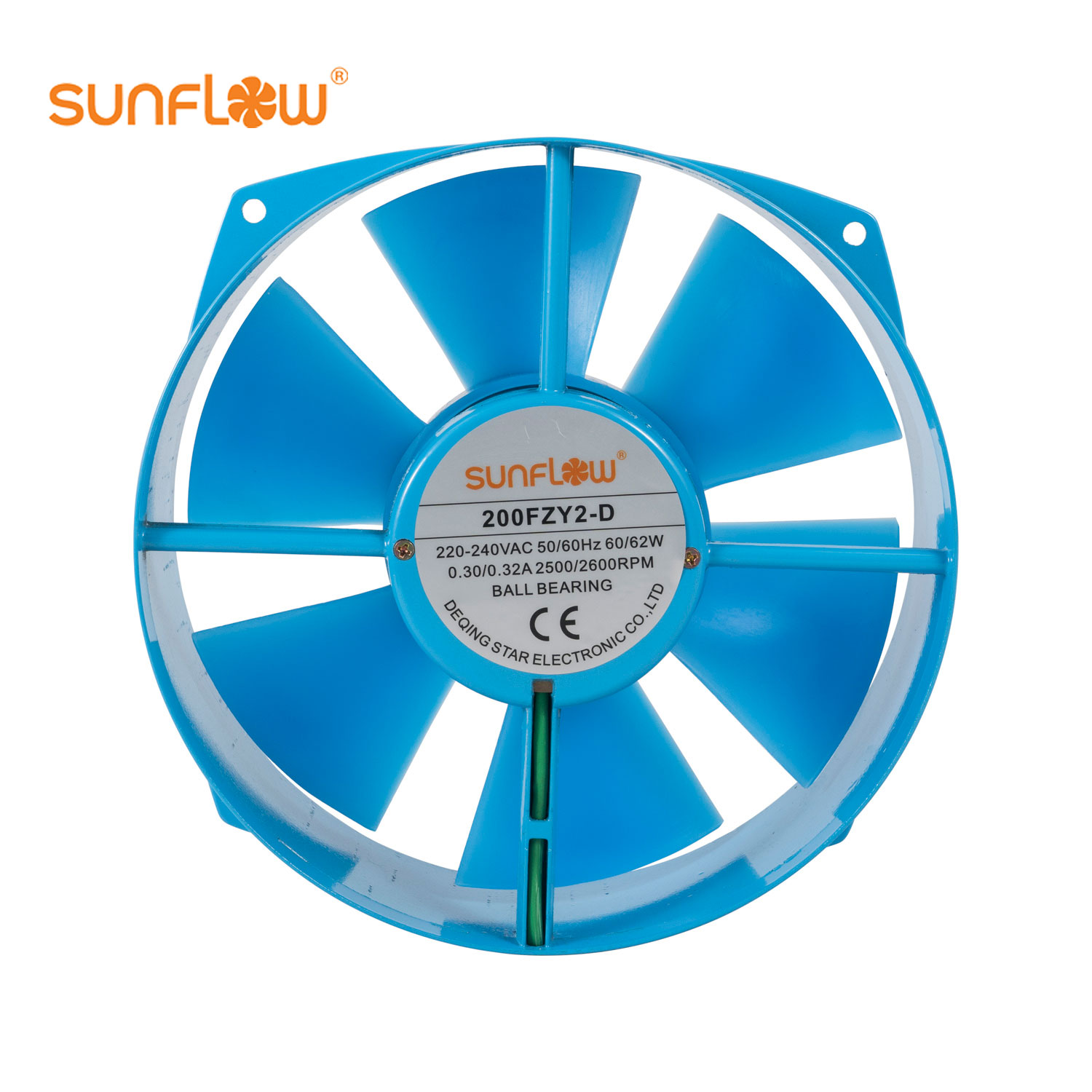

200FZY2-D
SUNFLOW
| Availability: | |
|---|---|
| Quantity: | |
Fm series mini-shaded pole fan motors have compact structure and small volume. They have characte ristics of light weight convenient installation， low noisy，small electromagnetic disturbance， safty, longevity and so on, They are mainly applied to refrigeration equipment, power supply circuit， electric welding machine as well as other ventilating and cooling equipment.
The applicable ambient temperature.
Ball bearing:(B)-20~+60℃
Sleeve bearing:(S)0~+50℃
The average se rvice life of motors is over 30000 hours.
Before operating the motor,make sure to put the earth wire of the motor connected with the external grounding device.
Fm series mini-shaded pole fan motors have compact structure and small volume. They have characte ristics of light weight convenient installation， low noisy，small electromagnetic disturbance， safty, longevity and so on, They are mainly applied to refrigeration equipment, power supply circuit， electric welding machine as well as other ventilating and cooling equipment.
The applicable ambient temperature.
Ball bearing:(B)-20~+60℃
Sleeve bearing:(S)0~+50℃
The average se rvice life of motors is over 30000 hours.
Before operating the motor,make sure to put the earth wire of the motor connected with the external grounding device.
Model | Frequency Hz | Voltage V | Bearing Type | Current Amp | Power W | Speed Rpm | Airflow M³/min | Noise dB(A) | Phase |
200FZY2-D | 50/60 | 220 | Ball | 0.30 | 65 | 2500 | 13 | 70 | 1 |
200FZY3-D | 50/60 | 380 | Ball | 0.15 | 65 | 2600 | 13 | 70 | 3 |
200FZY4-D | 50/60 | 380 | Ball | 0.16 | 65 | 2600 | 13 | 70 | 1 |
Model | Frequency Hz | Voltage V | Bearing Type | Current Amp | Power W | Speed Rpm | Airflow M³/min | Noise dB(A) | Phase |
200FZY2-D | 50/60 | 220 | Ball | 0.30 | 65 | 2500 | 13 | 70 | 1 |
200FZY3-D | 50/60 | 380 | Ball | 0.15 | 65 | 2600 | 13 | 70 | 3 |
200FZY4-D | 50/60 | 380 | Ball | 0.16 | 65 | 2600 | 13 | 70 | 1 |
