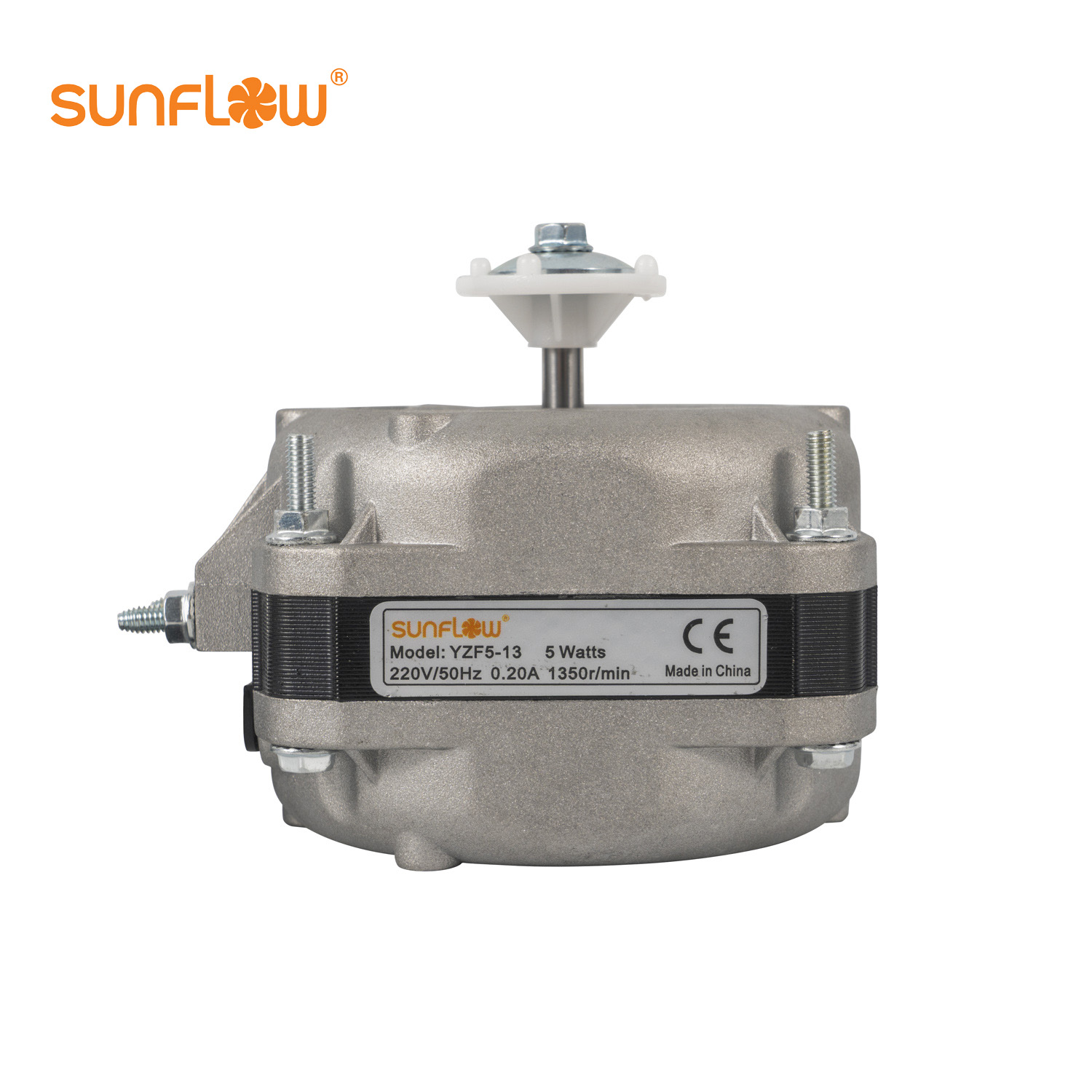

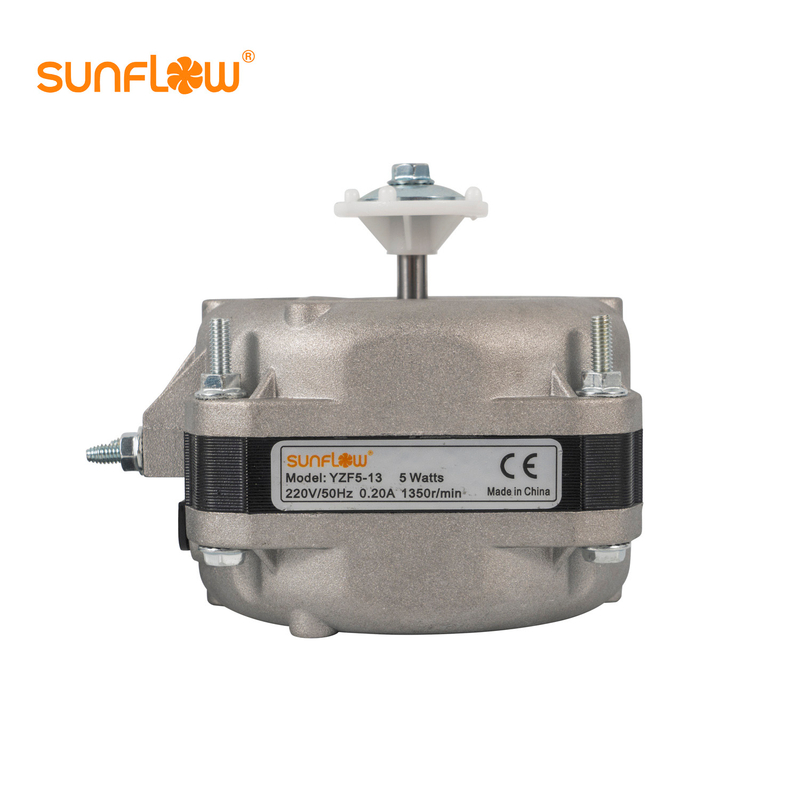

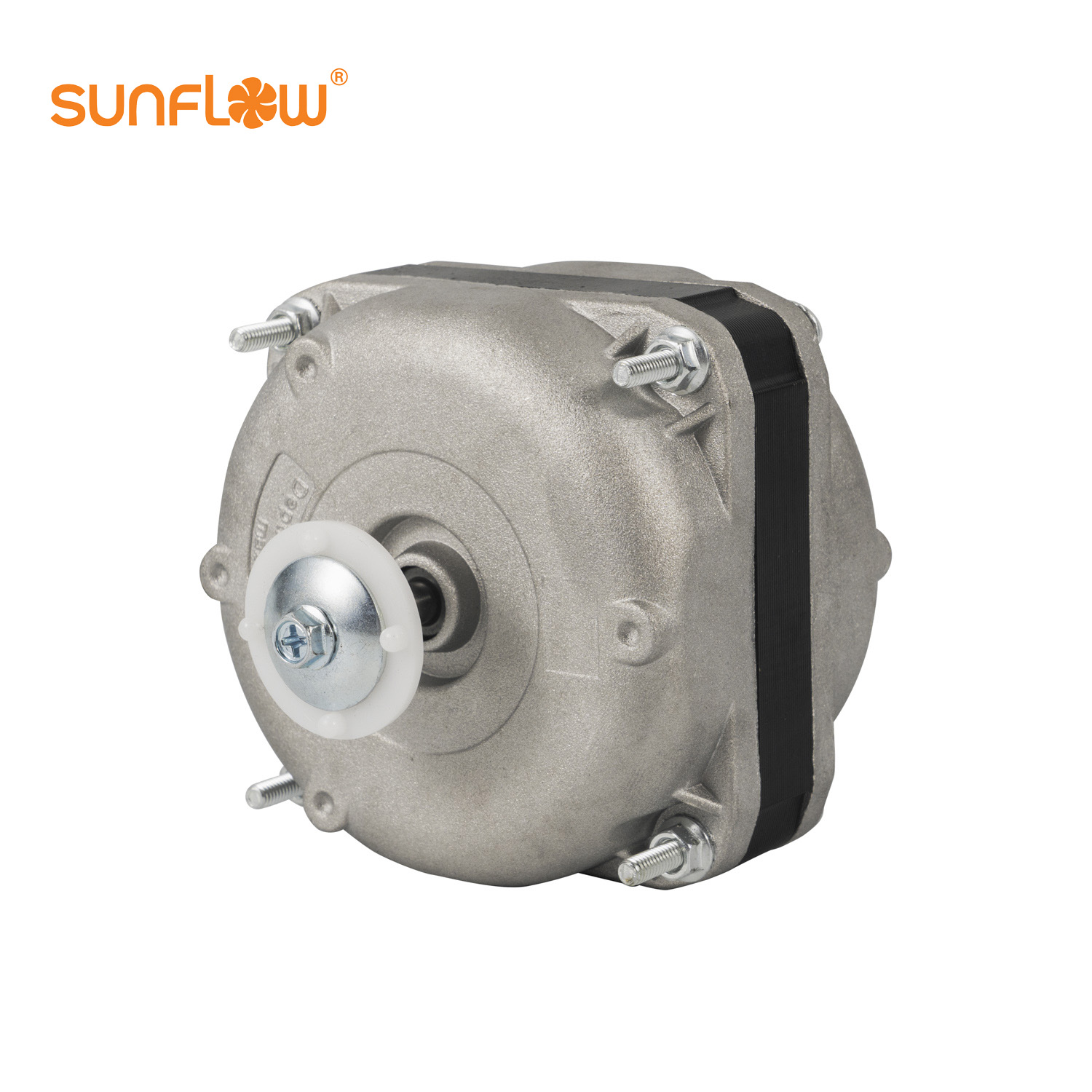

YZF5-13-3#
SUNFLOW
| Availability: | |
|---|---|
| Quantity: | |
YZF series motors are shaded pole motors with single phase , 4 shaded poles and running at rated voltage of220-240V，50/60Hz Or 110~120V，60Hz. They are widely used in the radiator，evaporator and other refrigeration equipment.
The output power is from 2W to 34W ， Which is relative to the stack length and coil parameters .
The Insulation class of motors is B . and the protection class of that is IP42. On request IP44 is avaliable .
The applicable ambient temperatuer is from -10℃~50℃.
Because our standard motors adopt sleeve bearing . we suggest instaling these motors horizomtally . On request motors can be furnished with ball bearings .
The average service life of motors is over 20000 hours .
All of shaded pole motors passed CE approval .
The series products have two design models including separated type and integral type, please indicate your requirements.
Before operating the motor . make sure the earth wire of the motor connected with the external grounding device .
YZF series motors are shaded pole motors with single phase , 4 shaded poles and running at rated voltage of220-240V，50/60Hz Or 110~120V，60Hz. They are widely used in the radiator，evaporator and other refrigeration equipment.
The output power is from 2W to 34W ， Which is relative to the stack length and coil parameters .
The Insulation class of motors is B . and the protection class of that is IP42. On request IP44 is avaliable .
The applicable ambient temperatuer is from -10℃~50℃.
Because our standard motors adopt sleeve bearing . we suggest instaling these motors horizomtally . On request motors can be furnished with ball bearings .
The average service life of motors is over 20000 hours .
All of shaded pole motors passed CE approval .
The series products have two design models including separated type and integral type, please indicate your requirements.
Before operating the motor . make sure the earth wire of the motor connected with the external grounding device .
Model | Voltage V | Frequency Hz | Rated Input W | Out Put W | Rated Current A | Rated Speed r/min | Air Volume m³/h | Fan Blade mm | License |
YZF2-13-26 | 220-240 | 50/60 | 20 | 2 | 0.14 | 1300 | 205 | Φ172 | CE |
YZF5-13-26 | 220-240 | 50/60 | 29 | 5 | 0.2 | 1300 | 455 | Φ200 | CE |
YZF6-13-26 | 110-120 | 60 | 33 | 6 | 0.55 | 1550 | 510 | - | |
YZF7-20-26 | 220-240 | 50/60 | 31 | 7 | 0.23 | 1300 | 640 | Φ230 | CE |
YZF10-20-26 | 220-240 | 50/60 | 36 | 10 | 0.25 | 1300 | 650 | Φ230 | CE |
110-120 | 60 | 55 | 10 | 0.8 | 1550 | 800 | - | ||
YZF12-20-26 | 220-240 | 50/60 | 54 | 12 | 0.36 | 1300 | 690 | Φ230 | CE |
YZF16-25-26 | 220-240 | 50/60 | 60 | 16 | 0.45 | 1300 | 760 | Φ254 | CE |
YZF18-25-26 | 110-120 | 60 | 70 | 18 | 1.01 | 1550 | 940 | - | |
YZF18-30-26 | 220-240 | 50/60 | 70 | 18 | 0.5 | 1300 | 1000 | Φ254 | CE |
110-120 | 60 | 75 | 18 | 1.1 | 1450 | - | |||
YZF25-40-26 | 220-240 | 50/60 | 90 | 25 | 0.7 | 1300 | 1030 | Φ300 | CE |
110-120 | 60 | 100 | 25 | 1.4 | 1450 | - | |||
YZF34-45-26 | 220-240 | 50/60 | 110 | 34 | 0.85 | 1300 | 1210 | Φ300 | CE |
110-120 | 60 | 110 | 34 | 1.5 | 1450 | - |
Model | Voltage V | Frequency Hz | Rated Input W | Out Put W | Rated Current A | Rated Speed r/min | Air Volume m³/h | Fan Blade mm | License |
YZF2-13-26 | 220-240 | 50/60 | 20 | 2 | 0.14 | 1300 | 205 | Φ172 | CE |
YZF5-13-26 | 220-240 | 50/60 | 29 | 5 | 0.2 | 1300 | 455 | Φ200 | CE |
YZF6-13-26 | 110-120 | 60 | 33 | 6 | 0.55 | 1550 | 510 | - | |
YZF7-20-26 | 220-240 | 50/60 | 31 | 7 | 0.23 | 1300 | 640 | Φ230 | CE |
YZF10-20-26 | 220-240 | 50/60 | 36 | 10 | 0.25 | 1300 | 650 | Φ230 | CE |
110-120 | 60 | 55 | 10 | 0.8 | 1550 | 800 | - | ||
YZF12-20-26 | 220-240 | 50/60 | 54 | 12 | 0.36 | 1300 | 690 | Φ230 | CE |
YZF16-25-26 | 220-240 | 50/60 | 60 | 16 | 0.45 | 1300 | 760 | Φ254 | CE |
YZF18-25-26 | 110-120 | 60 | 70 | 18 | 1.01 | 1550 | 940 | - | |
YZF18-30-26 | 220-240 | 50/60 | 70 | 18 | 0.5 | 1300 | 1000 | Φ254 | CE |
110-120 | 60 | 75 | 18 | 1.1 | 1450 | - | |||
YZF25-40-26 | 220-240 | 50/60 | 90 | 25 | 0.7 | 1300 | 1030 | Φ300 | CE |
110-120 | 60 | 100 | 25 | 1.4 | 1450 | - | |||
YZF34-45-26 | 220-240 | 50/60 | 110 | 34 | 0.85 | 1300 | 1210 | Φ300 | CE |
110-120 | 60 | 110 | 34 | 1.5 | 1450 | - |
