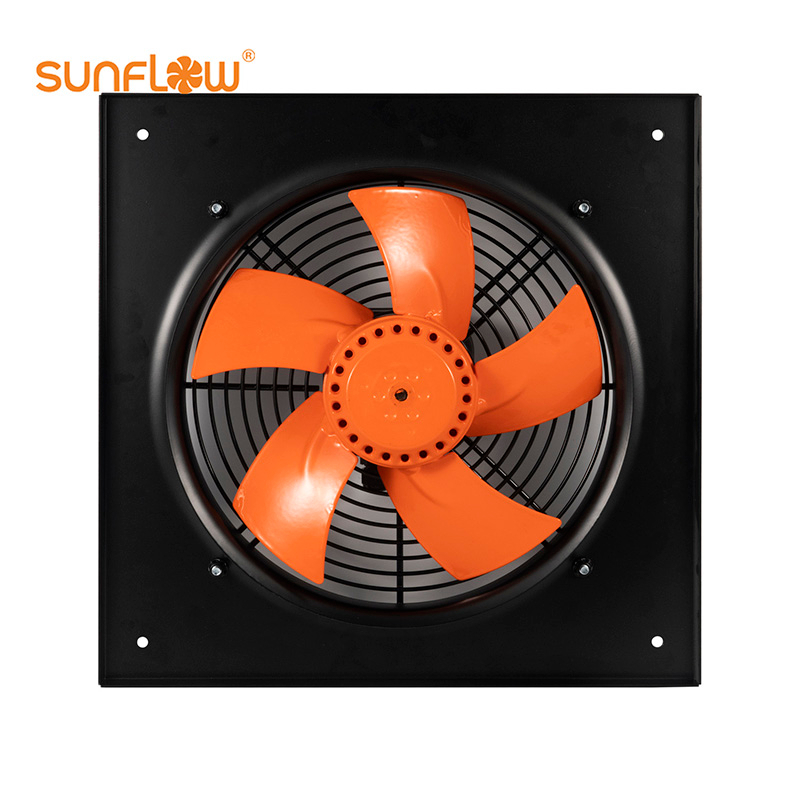

YWF2D-250S
SUNFLOW
| Availability: | |
|---|---|
| Quantity: | |
As an excellent ventilation and heat dissipation equipment, the outer rotor axial flow fan plays a key role in many fields with its unique design and excellent performance. It has a compact structure, easy installation, stable and reliable operation, and has the significant advantages of low noise and high efficiency and energy saving. Whether it is a hotel, restaurant, industrial and mining enterprise, or a building facility such as an office building, theater, or as a supporting equipment for refrigerators and cold storage, or for ventilation and heat dissipation, the outer rotor axial flow fan can do the job perfectly. It is widely used in refrigeration equipment such as supermarket refrigerators and cold storage, ice makers, air coolers, chillers, condensing units, as well as dehumidifiers, evaporators, side wall fans, fire fans, central air conditioning fans and other related equipment.
As an excellent ventilation and heat dissipation equipment, the outer rotor axial flow fan plays a key role in many fields with its unique design and excellent performance. It has a compact structure, easy installation, stable and reliable operation, and has the significant advantages of low noise and high efficiency and energy saving. Whether it is a hotel, restaurant, industrial and mining enterprise, or a building facility such as an office building, theater, or as a supporting equipment for refrigerators and cold storage, or for ventilation and heat dissipation, the outer rotor axial flow fan can do the job perfectly. It is widely used in refrigeration equipment such as supermarket refrigerators and cold storage, ice makers, air coolers, chillers, condensing units, as well as dehumidifiers, evaporators, side wall fans, fire fans, central air conditioning fans and other related equipment.
Model | Voltage V | Frequency Hz | Current Amp | Input W | Speed r/min | Airflow M³/h | Noise dB(A) | CAP μF | NET Kg |
YWF2D-250 | 380 | 50 | 0.25 | 100 | 2550 | 1367 | 60 | / | 3 |
YWF2E-250 | 220 | 50 | 0.48 | 100 | 2550 | 1358 | 60 | 3 | |
YWF4D-250 | 380 | 50 | 0.18 | 55 | 1400 | 1132 | 55 | / | |
YWF4E-250 | 220 | 50 | 0.25 | 50 | 1400 | 1108 | 55 | 2 |
Model | Voltage V | Frequency Hz | Current Amp | Input W | Speed r/min | Airflow M³/h | Noise dB(A) | CAP μF | NET Kg |
YWF2D-250 | 380 | 50 | 0.25 | 100 | 2550 | 1367 | 60 | / | 3 |
YWF2E-250 | 220 | 50 | 0.48 | 100 | 2550 | 1358 | 60 | 3 | |
YWF4D-250 | 380 | 50 | 0.18 | 55 | 1400 | 1132 | 55 | / | |
YWF4E-250 | 220 | 50 | 0.25 | 50 | 1400 | 1108 | 55 | 2 |
