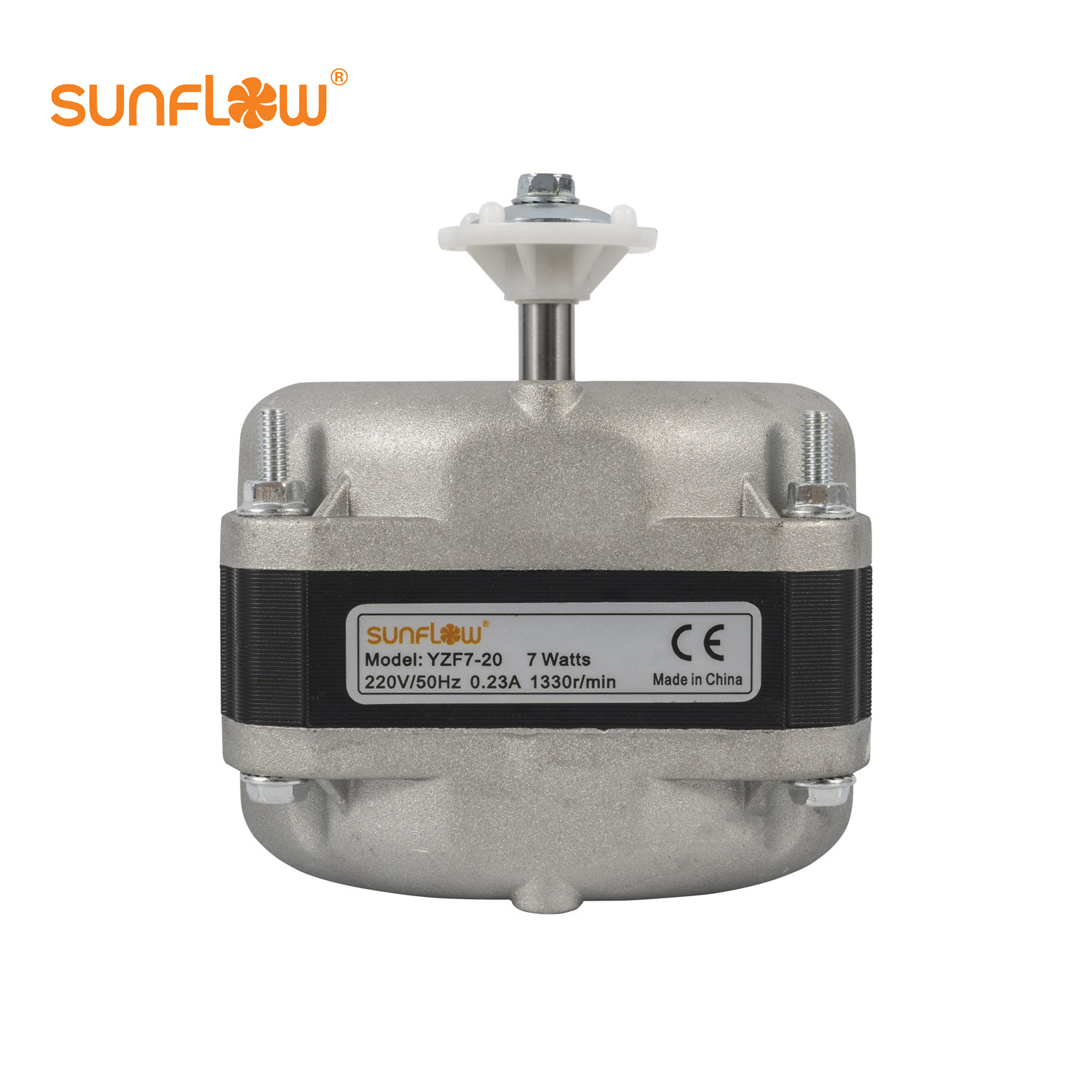

YZF7-20-3#
SUNFLOW
| Availability: | |
|---|---|
| Quantity: | |
The YZF series are single-phase, four-pole, hood-type motors. It is widely used in refrigeration equipment such as freezers, refrigerators, condensers, radiators, evaporators, wine cabinets, fresh-keeping cabinets, etc. All motors have passed CE certification. It has the advantages of safety and reliability, good conductivity, good heat dissipation, long life, and low noise.
This product has split design and one-piece design. And the output power of the motor can be customized and adjusted as required. Oil-bearing or rolling bearing motors can also be produced as required.
The YZF series are single-phase, four-pole, hood-type motors. It is widely used in refrigeration equipment such as freezers, refrigerators, condensers, radiators, evaporators, wine cabinets, fresh-keeping cabinets, etc. All motors have passed CE certification. It has the advantages of safety and reliability, good conductivity, good heat dissipation, long life, and low noise.
This product has split design and one-piece design. And the output power of the motor can be customized and adjusted as required. Oil-bearing or rolling bearing motors can also be produced as required.
Model | Voltage V | Frequency Hz | Rated Input W | Out Put W | Rated Current A | Rated Speed r/min | Air Volume m³/h | Fan Blade mm | License |
YZF2-13-26 | 220-240 | 50/60 | 20 | 2 | 0.14 | 1300 | 205 | Φ172 | CE |
YZF5-13-26 | 220-240 | 50/60 | 29 | 5 | 0.2 | 1300 | 455 | Φ200 | CE |
YZF6-13-26 | 110-120 | 60 | 33 | 6 | 0.55 | 1550 | 510 | - | |
YZF7-20-26 | 220-240 | 50/60 | 31 | 7 | 0.23 | 1300 | 640 | Φ230 | CE |
YZF10-20-26 | 220-240 | 50/60 | 36 | 10 | 0.25 | 1300 | 650 | Φ230 | CE |
110-120 | 60 | 55 | 10 | 0.8 | 1550 | 800 | - | ||
YZF12-20-26 | 220-240 | 50/60 | 54 | 12 | 0.36 | 1300 | 690 | Φ230 | CE |
YZF16-25-26 | 220-240 | 50/60 | 60 | 16 | 0.45 | 1300 | 760 | Φ254 | CE |
YZF18-25-26 | 110-120 | 60 | 70 | 18 | 1.01 | 1550 | 940 | - | |
YZF18-30-26 | 220-240 | 50/60 | 70 | 18 | 0.5 | 1300 | 1000 | Φ254 | CE |
110-120 | 60 | 75 | 18 | 1.1 | 1450 | - | |||
YZF25-40-26 | 220-240 | 50/60 | 90 | 25 | 0.7 | 1300 | 1030 | Φ300 | CE |
110-120 | 60 | 100 | 25 | 1.4 | 1450 | - | |||
YZF34-45-26 | 220-240 | 50/60 | 110 | 34 | 0.85 | 1300 | 1210 | Φ300 | CE |
110-120 | 60 | 110 | 34 | 1.5 | 1450 | - |
Model | Voltage V | Frequency Hz | Rated Input W | Out Put W | Rated Current A | Rated Speed r/min | Air Volume m³/h | Fan Blade mm | License |
YZF2-13-26 | 220-240 | 50/60 | 20 | 2 | 0.14 | 1300 | 205 | Φ172 | CE |
YZF5-13-26 | 220-240 | 50/60 | 29 | 5 | 0.2 | 1300 | 455 | Φ200 | CE |
YZF6-13-26 | 110-120 | 60 | 33 | 6 | 0.55 | 1550 | 510 | - | |
YZF7-20-26 | 220-240 | 50/60 | 31 | 7 | 0.23 | 1300 | 640 | Φ230 | CE |
YZF10-20-26 | 220-240 | 50/60 | 36 | 10 | 0.25 | 1300 | 650 | Φ230 | CE |
110-120 | 60 | 55 | 10 | 0.8 | 1550 | 800 | - | ||
YZF12-20-26 | 220-240 | 50/60 | 54 | 12 | 0.36 | 1300 | 690 | Φ230 | CE |
YZF16-25-26 | 220-240 | 50/60 | 60 | 16 | 0.45 | 1300 | 760 | Φ254 | CE |
YZF18-25-26 | 110-120 | 60 | 70 | 18 | 1.01 | 1550 | 940 | - | |
YZF18-30-26 | 220-240 | 50/60 | 70 | 18 | 0.5 | 1300 | 1000 | Φ254 | CE |
110-120 | 60 | 75 | 18 | 1.1 | 1450 | - | |||
YZF25-40-26 | 220-240 | 50/60 | 90 | 25 | 0.7 | 1300 | 1030 | Φ300 | CE |
110-120 | 60 | 100 | 25 | 1.4 | 1450 | - | |||
YZF34-45-26 | 220-240 | 50/60 | 110 | 34 | 0.85 | 1300 | 1210 | Φ300 | CE |
110-120 | 60 | 110 | 34 | 1.5 | 1450 | - |
